Accuracy Wind Speed Monitoring Sensor with 0.8m Cable, 3 Anemometer, DC 5V for Weather Stations and Industrial Applications

Item Type: Wind Speed Monitoring SensorMaterial: ABSProduct Size: Approx. 158x180x70mm / 6.2x7.1x2.8inSupply Voltage: DC5VCommunicating Type: RS485 (Default for Modbus Protocol)Measuring Range: Wind Speed 0‑45m/sExtension Line Length At Connection: 0.8 Meters/2.6ftAccuracy: ± (0.5+0.02V) M/s (V Represents The Real Time Wind Speed Value)Resolution: 0.1m/sStart Up Wind Speed: 0.8m/sMaximum Power Consumption: 0.48WLoad Capacity: DC12V Power Supply, Current Type Output Impedance 350ΩDC24V Power Supply, Current Type Output Impedance 900Ω, Voltage Type Output Impedance 1KΩOperating Environment: Temperature ‑35℃ to 60℃, Humidity 100.0% RH Without CondensationProtecting Grade: IP64Widely Used In: Greenhouse, Environmental Protecting, Ships, Docks, Breeding, Advertising Gates, Meteorology, Marine, Environment, Airports, Ports, Laboratories, Industry and and Transportation and Other Environments of Wind Speed Measurement.Note about the sensor communicating protocol:First, if you are using a single sensor connected to the computer to read data directly, it is recommended to use the company's private protocol (see page 3), you can visualize the data in ASCII code (hex send, non hex receive);Second, if you are a multi sensor interconnection with PLC, configuration or programmable collector, it is recommended to use the standard for ModBus RTU protocol.Third, if there is no special requirements, the sensor parameters in the device address default 1, baud rate = 9600, the protocol for ModBus RTU.Standard for ModBus RTU protocol:Serial Port Format:Data bit 8 bits, stop bit 1 bit, parity bit None, default baud rate 9600bps, serial debugging software set to hex send and receive, two communicating intervals of at least 500ms or more, CRC in the specification for the parity bit, 2 bytes. The device address is 1 by default.For Modbus CRC checksum steps :1.

• ABS Material: Constructed from Excellent Quality- ABS material, this wind speed sensor durability and , withstanding harsh environments.
• Accuracy Measurement: Featuring a 3- , anemometer provides wind speed measurements, essential for weather stations and industrial applications.
• Strong -Interference Ability: With an IP64 , sensor is protected from external interferences, ensuring data collection.

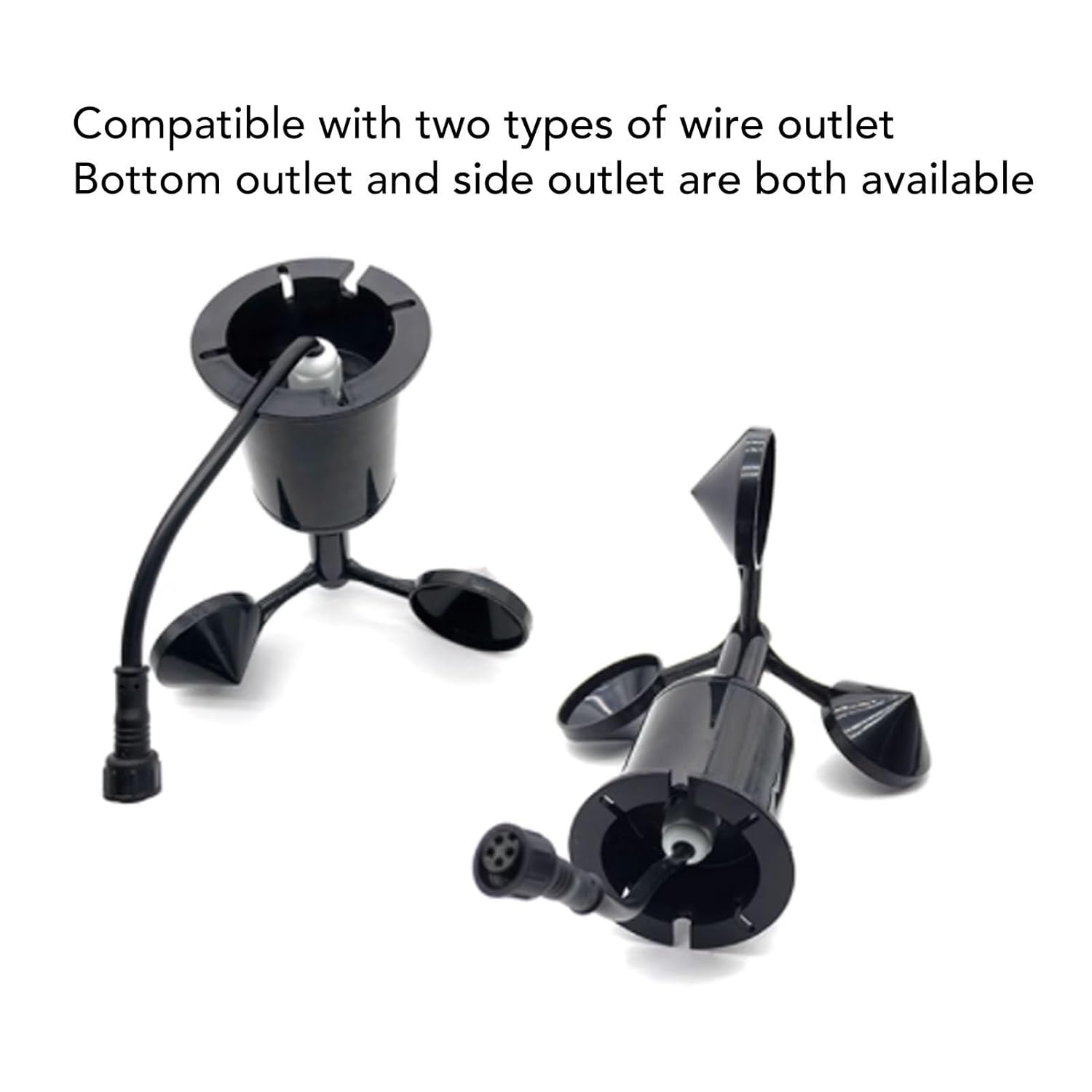

• Versatile Outlet Modes: Compatible with both bottom and side outlet modes, making it to integrate into various , saving time and .
• Wide Range of Applications: Ideal for use in greenhouse, , ships, docks, and other environments where wind speed measurement is .
