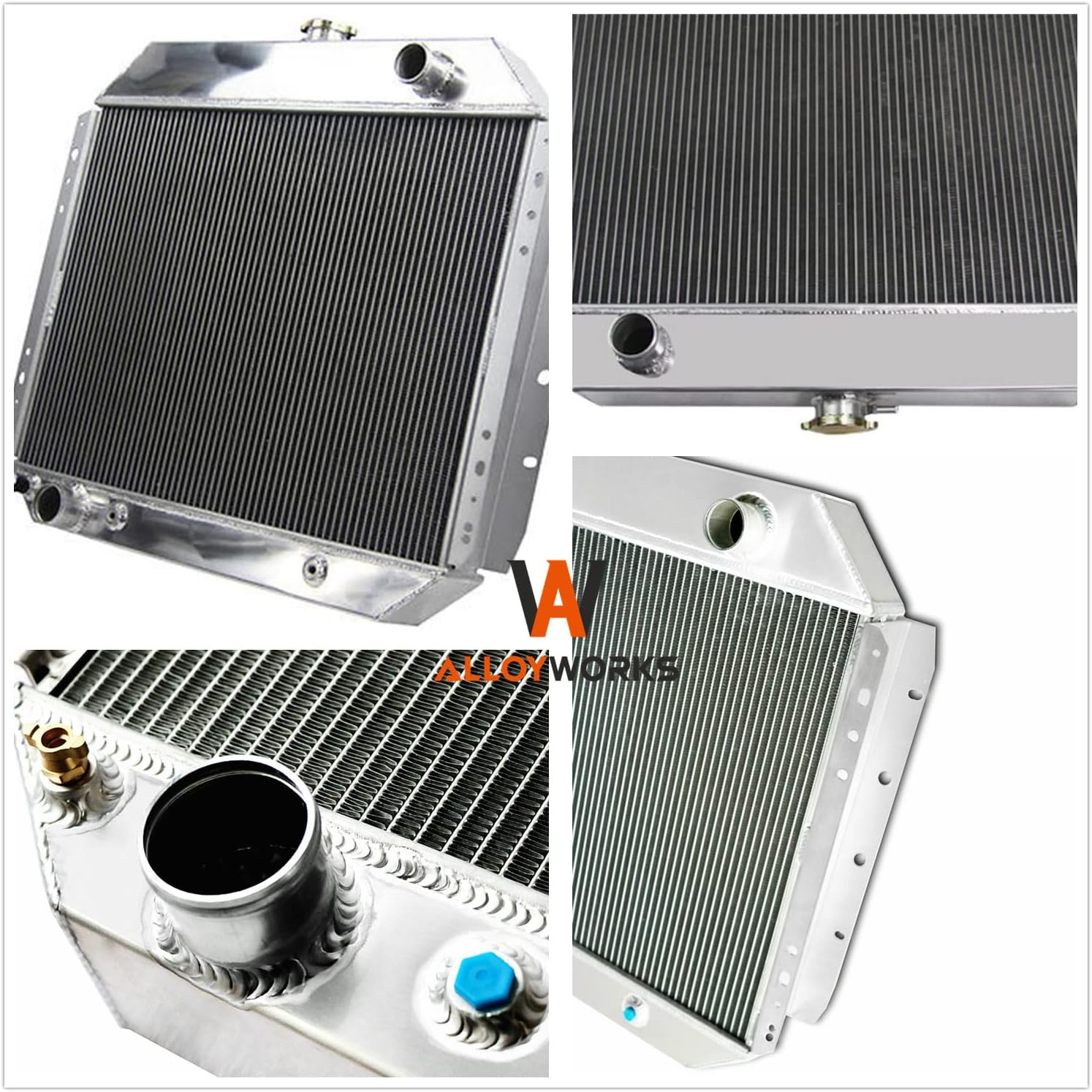

ALLOYWORKS 3 Row Aluminum Radiator For Ford Trucks F100 F150 F250 F350 1966-1979 Bronco Pickup Truck 66 67 68 69 70 71 72 73 74 75 76 77 78 79 L6 Radiators, AT MT

ALLOYWORKS 3 Row of Tubes Core Racing Design, Complete Radiator will be your Best Choice! Application:For 1966-1979 FORD F-Series/ Bronco TRUCK V8For Ford Bronco 1978-1979 (351ci V8, 400ci V8);For Ford F-Series Truck 1968-1969 (4.9L Straight 6-cylinder, 360ci V8, 390ci V8);For Ford F-Series Truck 1970-1972 (360ci V8, 390ci V8);For Ford F-Series Truck 1973-1975 (302ci V8, 360ci V8, 390ci V8);For Ford F-Series Truck 1976 (302ci V8, 351ci V8);For Ford F-Series Truck 1977-1979 (302ci V8, 351ci V8, 400ci V8) OE/OEM Part Number: 433,SBR433,CC433,CU433,DPI433,DPI433,DPI132,CU132 Radiator Details:Color: SilverCore Size: Height:19.25" x Width: 26.3" x Thick: 2.75'' Overall: Height 26.3" x Width: 29.5"Inlet Diameter: 1.75" x Outlet Diameter: 2"Upper Hose Fitting: PASSLower Hose Fitting: DRIVERTrans Cooler Details: φ26*305*1/8-27NPT(T)Mounting Specs: Ver - 16 1/2 Horizontal - 27 3/8QC passed: YesMounting Type: BRACKETMaterial: Full AluminiumCore and Tank: All AluminumHigh Performance Racing Spec.Mounting Style: Screw-OnRadiator style: DownflowFit type: Vehicle SpecificCrafts: 100% Tig weldedDelivery: Local DeliveryFitment Type: Direct ReplacementPlacement on Vehicle: Engine CompartmentSurface Finish: Aircraft Grade Raw AluminumPetock Drain: OEM style brass petcock drainRadiator Cap: CNC machined filler neck and capTransmission Cooler: Automatic and Manual Gentle Hint:Parameters Meticulous Prior to Ordering.Pls compare the overall width with your original radiator.Professional installation is highly recommended! No Fitting Instructions Supplied!Please contact us for installation video or other any problem.

• [Vehicle Fitment] Radiator Compatible with 1966 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 Ford F100 F150 F250 F350 Bronco F-Series Truck AT MT
• [Dimensions] Core Size: Height:19.25" x Width: 26.3" x Thick: 2.75''; Overall: Height 26.3" x Width: 29.5"; Inlet Diameter: 1.75" x Outlet Diameter: 2"; Trans Cooler Details: φ26*305*1/8-27NPT(T)
• [Premium Quality] Constructed with Aircraft AA5052 aluminum, this radiator is 100% welded and features brazed core technology with no epoxy. The high-quality aluminum core makes it a direct fit and built to last long. Before delivery, each radiator undergoes five checks in the production process and is pressure tested to ensure no leakage.
• [Cooling Feature] The full aluminum radiator is lightweight and high heat transferring aluminum features a tube and fin design,that dramatically increases surface area that enables the heat to dissipate more efficiently. It provides 30% more cooling capacity than a standard radiator.
• [No Leaking Worries] All radiator have to go through 5 checks in the whole process.100% leaking and pressure tested. Thickened packing(either carton or wooden box), foam with shock absorption.
