CQRobot 2.54 mm Pitch 4-Pin / 5-Pin / 6-Pin / 8-Pin / 10-Pin Colorful Stackable Stacking Pin PCB Vertical Header Kit. Application to DIY Prototyping Electronic Projects.
4.0 (138 items)
Limited Time SaleUS$17.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216992907 | Release Date | 2026/04/19 | List Price | US$12.00 | Model Number | 216992907 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

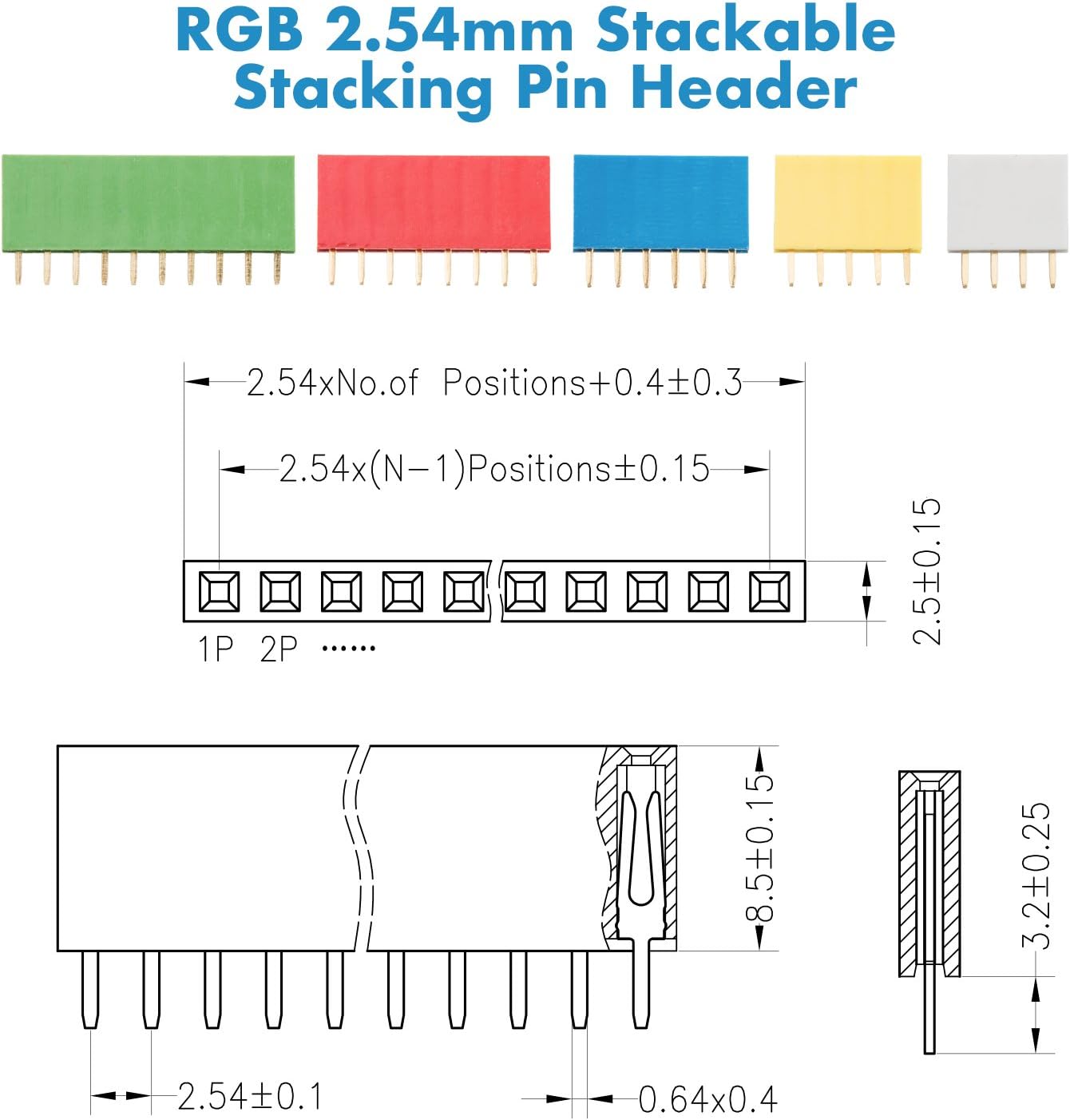

The kit contains 2.54mm female and pin header kit, the color contains white, yellow, blue, red, green, orange six colors, specifications include 4P, 5P, 6P, 8P, 10P.SPECIFICATION2.54mm Stackable Stacking Pin Header- Rated Current: 3.0AMP - Contact Resistance: 20MΩ Max - Withstand Voltage: 1000V AC/DC - Lnsulation Resistance: 1000MΩ Min - Operation Temperature: -40 Degree Celsius to 105 Degree Celsius - Contact Materual: Brass - Contact Plating: Au or Sn Over Ni - lnsulator Material: Polyester(UL94V-0) - Standard: PBT - Max.Processing Temp: 180 Degree Celsius for 30-60 Seconds(200 Degree Celsius for 10 Seconds)2.54mm PCB Header Vertical- Rated Current: 3.0AMP - Contact Resistance: 20MΩ Max - Withstand Voltage: 1000V AC/DC - Lnsulation Resistance: 1000MΩ Min - Operation Temperature: -40 Degree Celsius to 105 Degree Celsius - Contact Materual: Brass - Contact Plating: Au Over Ni - lnsulator Material: Polyester(UL94V-0) - Standard: PA6T - Max.Processing Temp: 230 Degree Celsius for 30-60 Seconds(260 Degree Celsius for 10 Seconds)SHIPPING LIST20 * 2.54mm - 4 Pin Stackable Stacking Pin Header (White) 20 * 2.54mm - 5 Pin Stackable Stacking Pin Header (Yellow) 20 * 2.54mm - 6 Pin Stackable Stacking Pin Header (Blue) 20 * 2.54mm - 8 Pin Stackable Stacking Pin Header (Red) 20 * 2.54mm - 10 Pin Stackable Stacking Pin Header (Green) 30 * 2.54mm - 4 Pin PCB Header Vertical (White) 30 * 2.54mm - 5 Pin PCB Header Vertical (Orange) 30 * 2.54mm - 6 Pin PCB Header Vertical (Blue) 30 * 2.54mm - 8 Pin PCB Header Vertical (Red) 30 * 2.54mm - 10 Pin PCB Header Vertical (Green)

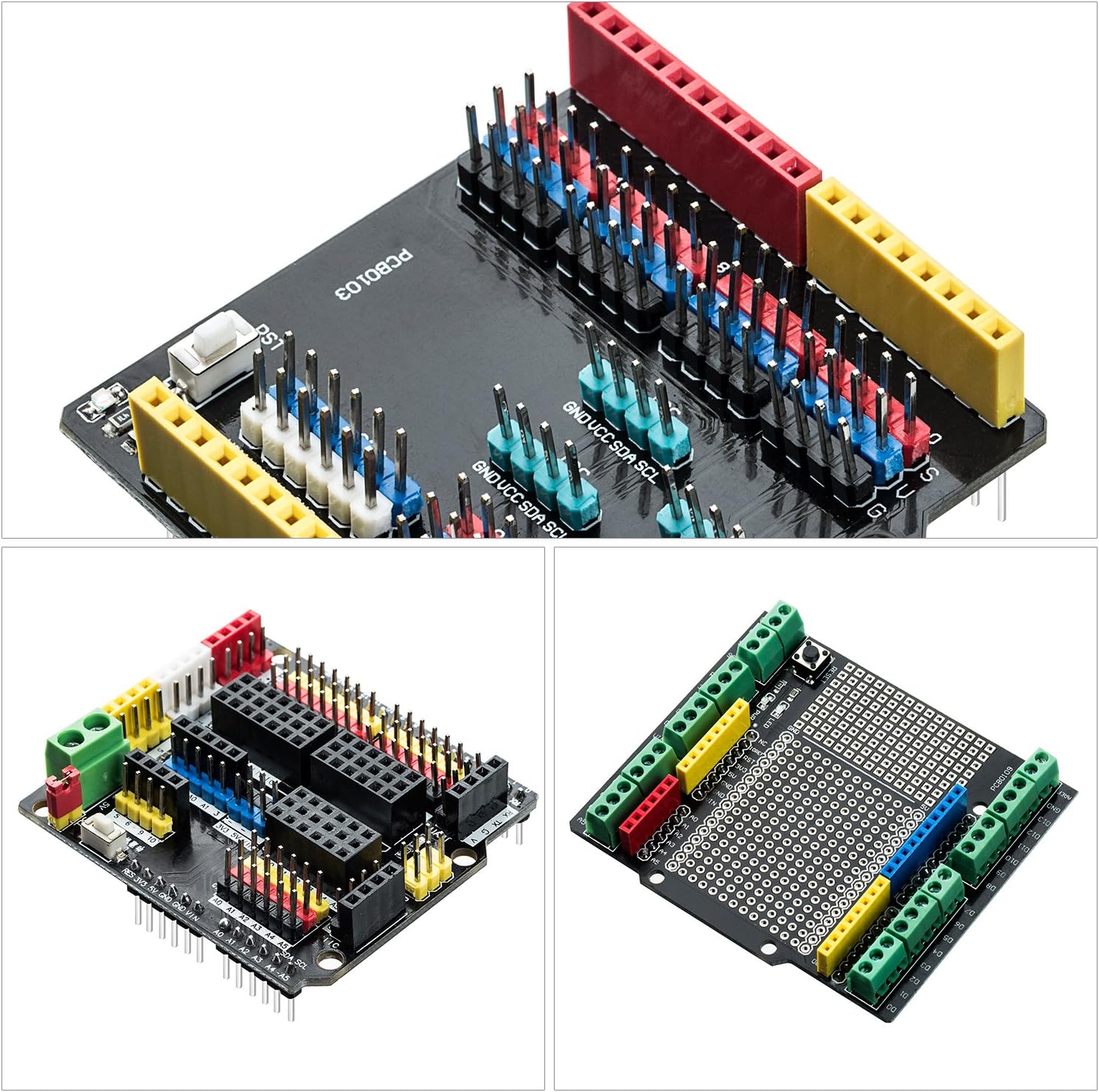

- Suitable for Arduino, PCB Prototypingand Prototype board Assembly.
- For Arduino UNO R3, Female Socket Blue - Analog Pin Indicator (6P), Female Red Plug - Arduino Power Pin Indicator and Digital Pin Indicator (8P).
- 2.54mm female and pin header 4P/5P/6P/8P/10P.
- The color contains white, yellow, blue, red, green, orange six colors.
| Item Weight | 6.7 ounces |
|---|---|
| Manufacturer | CQRobot |
| Item model number | CQRPM0254GB |
| Package Dimensions | 5.71 x 3.58 x 1.57 inches |
| Is Discontinued By Manufacturer | No |
