Electric Door Strike, Hidden Door Lock, Electrical Panel Lock Nc No Cathode for Wood Metal Door

Specifications:Type: NC Electric Strike, NO Electric Strike (Optional)Material: stainless steelWithstand tension: 500kg thrustInput voltage: DC12VOperating current: 200mA (NO); 200mA (NC)Safety type: Power-off lock (NO); Power-off unlock (NC)Applicable door type: wooden door, metal door, PVC doorSurface temperature: below ambient temperature +20 °CApplicable temperature: -10~+55°CApplicable humidity: 0~95%Size: 160 * 25 * 31mm / 6.3 * 1.0 * 1.2inWeight: Approx. 289gPackage List: 1 * Lock1 * Screw Kit1 * Manual

• OPERATING MODES: This electric strike door lock features two working modes: power-off lock and power-off unlock. It withstands large thrust impact, with input voltage DC12V and 200mA current draw for consistent operation.
• SAFETY POWER OPTIONS: The roll up door lock includes safety mechanisms: power-off lock for NO type and power-off unlock for NC type. Optional NC and NO electric strike model offer flexible security configurations.

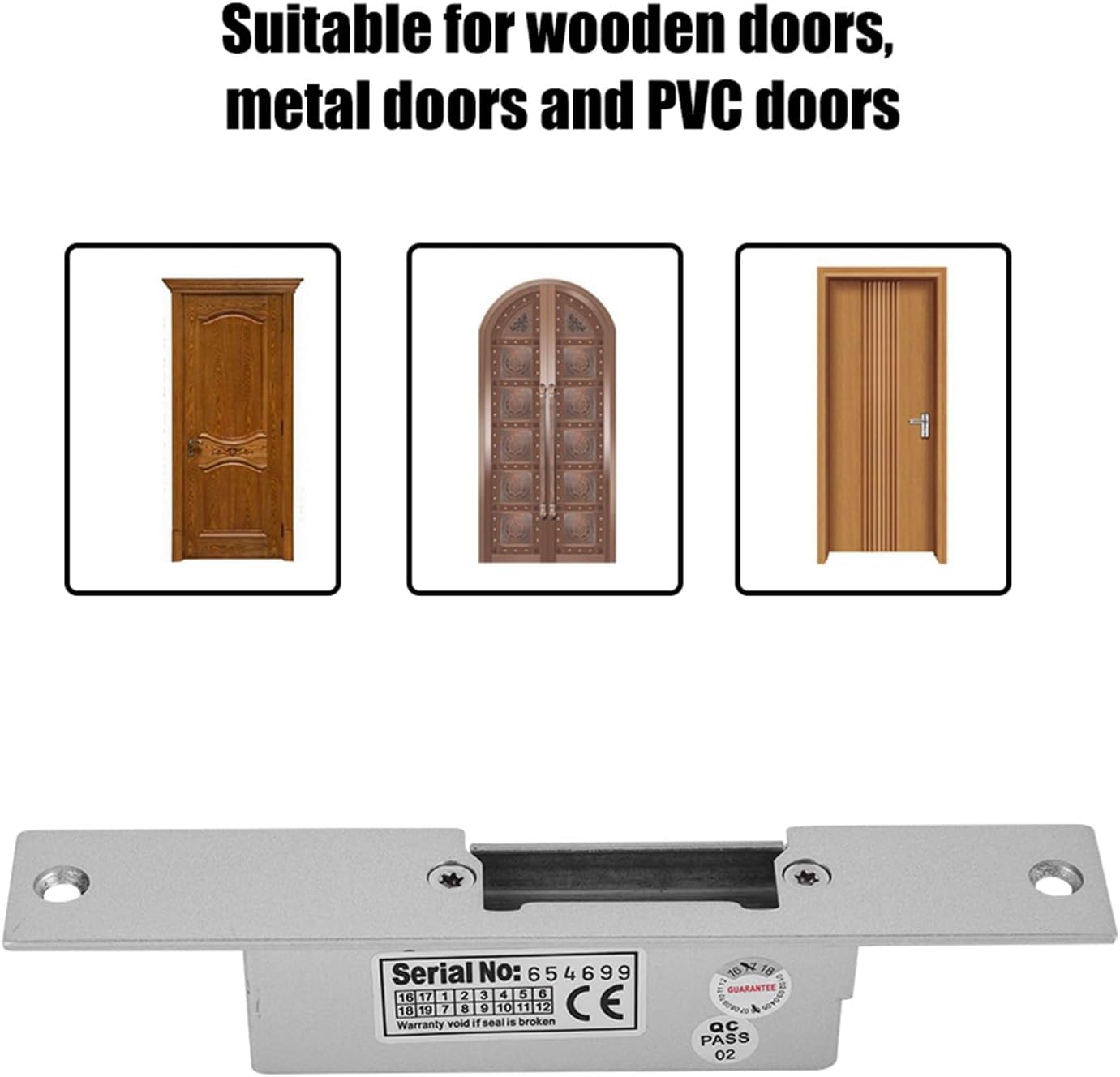

• DOOR COMPATIBILITY: Designed for electric door locks, this product fits wooden, metal, and PVC doors. Applicable to various entry systems with easy installation on multiple door materials.
• MATERIAL STRUCTURE: The hidden door latch uses hardened steel linkage to resist impact. Surface coated with high-temperature paint provides enhanced protection and good appearance.

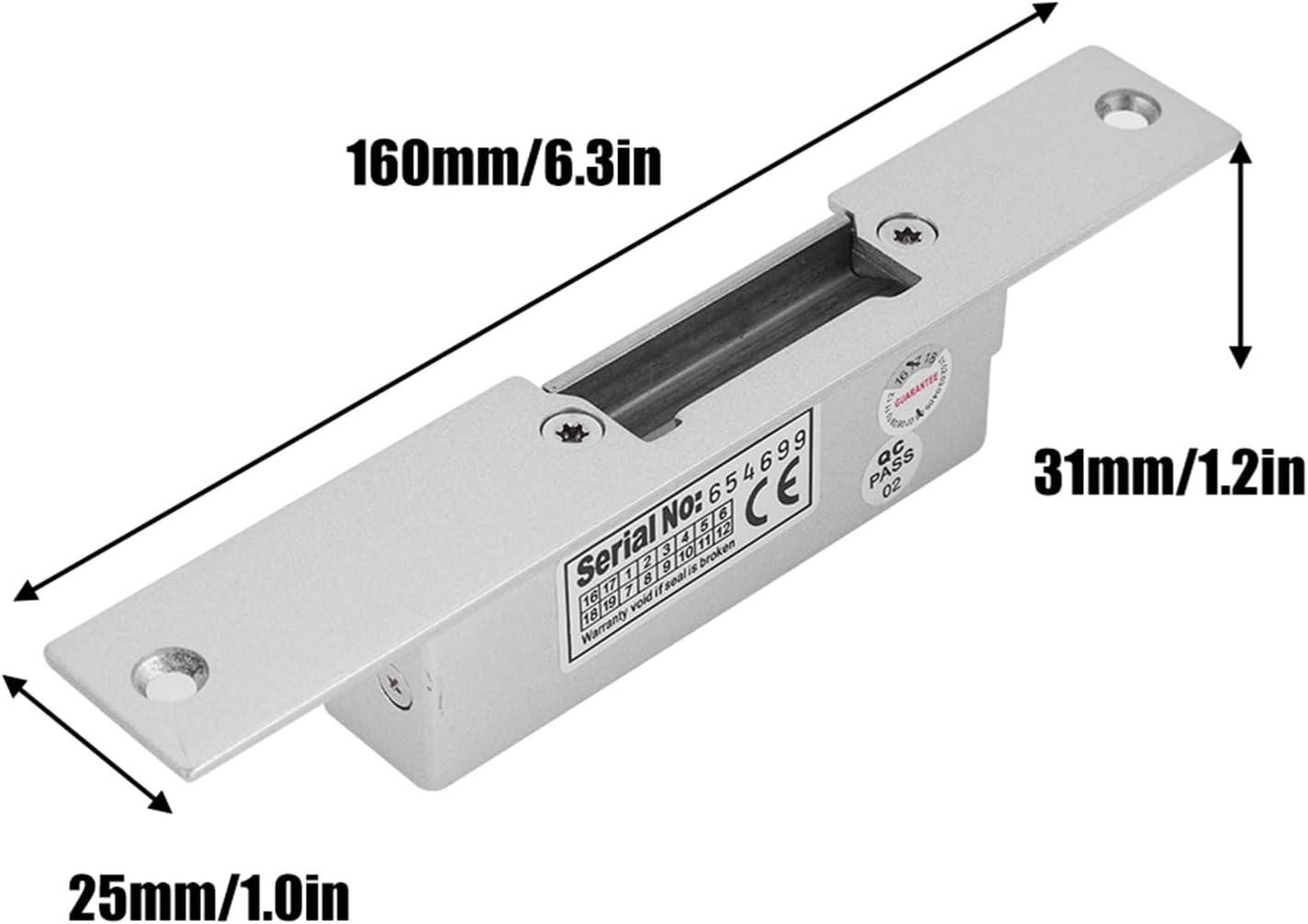

• PACKAGE AND MODEL: Included is one hidden lock TA-130, screw kit, and manual for installation. Dimension: 160 x 25 x 31 mm / 6.3 x 1.0 x 1.2 in, weight approx. 289g.
