ESP32-S3 1.43inch AMOLED Touch Display Development Board, 466x466 QSPI Interface AMOLED Round LCD, Onboard Accelerometer and Gyroscope Sensor RTC Chip, ESP32 with Display, with CNC Metal Case
4.3 (96 items)
Limited Time SaleUS$24.76 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216115467 | Release Date | 2026/04/19 | List Price | US$16.51 | Model Number | 216115467 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ESP32-S3 1.43inch AMOLED Display Development Board, adopts ESP32-S3R8 chip. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. The AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image ( This is with CNC metal case version, better protection ).
- Supports 2.4GHz W-i-F--i (802.11 b/g/n) and Blue too th 5 (LE), with an onboard antenna. Supports switching to use external antenna via resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB P SRAM.

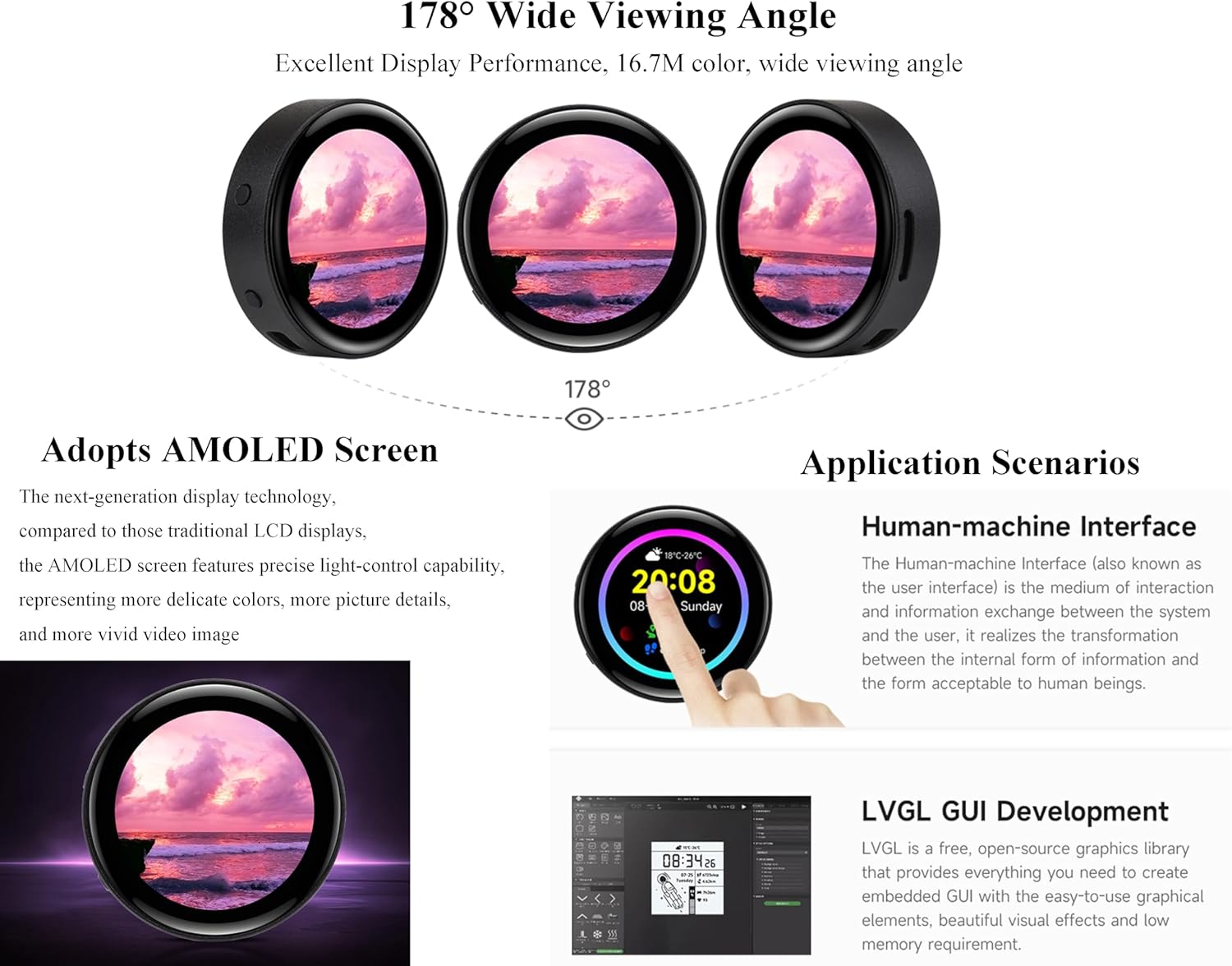

- Onboard 1.43inch AMOLED display, QSPI interface, 466 × 466 resolution. 178° wide viewing angle,Excellent Display Performance, 16.7M color, wide viewing angle. Supports capacitive touch function controlled via I2C interface, with interrupt support.
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 R T C chip with reserved SH1.0 RTC ba tte-ry header (supports charging) for R T C function requirement.
- Onboard RST button and programmable BOOT button for easy custom function development. Onboard 3.7V MX1.25 Lith ium batte-ry recharge/discharge header. Onboard TF card slot for external TF card storage of pictures or files.

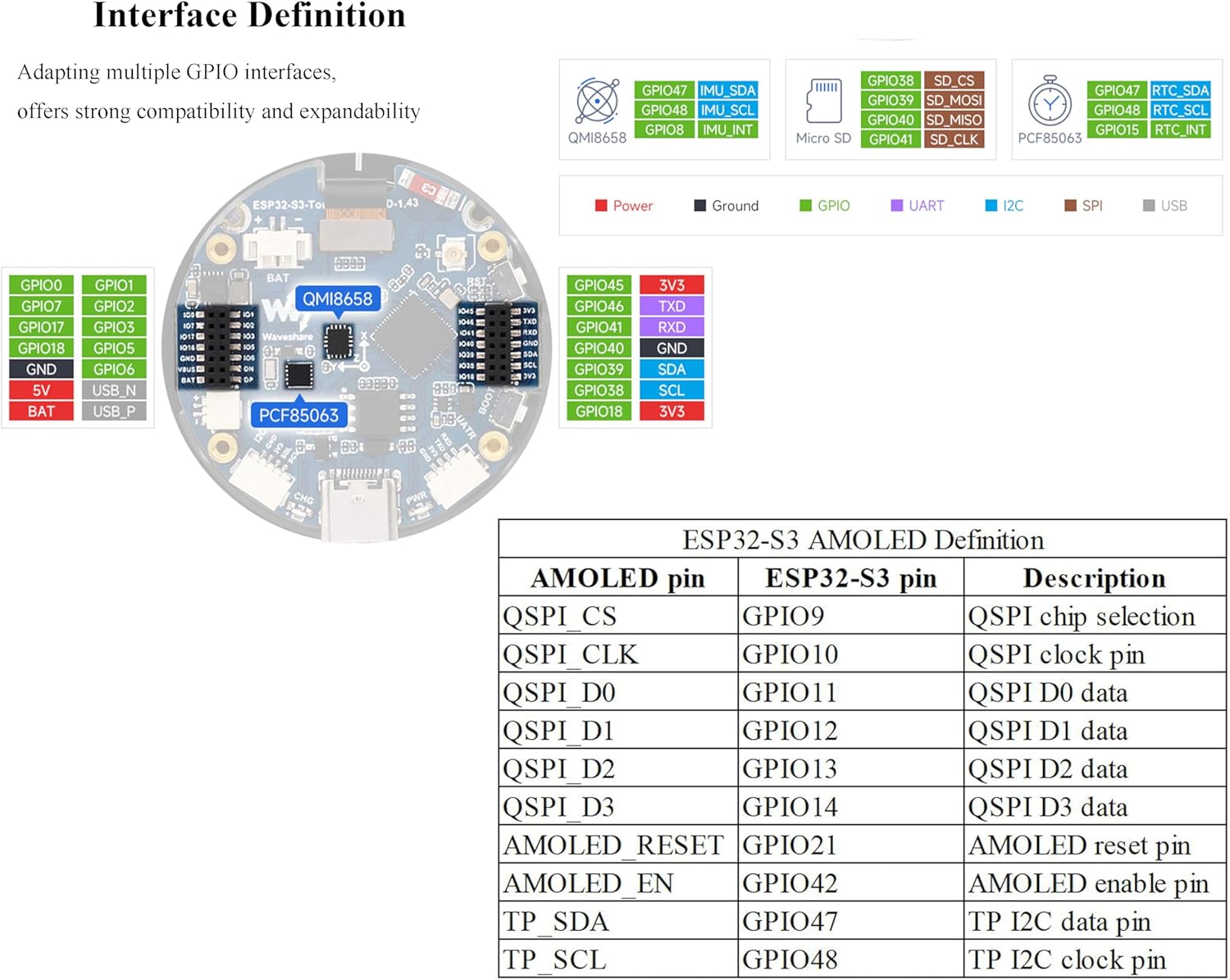

- Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard UART and I2C SH1.0 4PIN connector, reserved 2 × 14PIN 1.27mm pitch headers, adapting multiple GPIO interfaces.
- Comes with Online Development Resources /User Manual, please follow there: bit.ly/4gbRgBa
| Brand | UeeKKoo |
|---|---|
| Manufacturer | UeeKKoo |
| Model Number | ESP32-S3-Touch-AMOLED-1.43-B |
| BuiltIn Media | ESP32-S3-Touch-AMOLED-1.43-B (with CNC metal case)x1, SH1.0 4PIN cable ~100mm x2 |
| Mfr Part Number | amzn.gr.UE-ESP32-S3_1.43_AMOLE-mVTyUF-VG |
| Warranty Description | Technical Support is provided |
