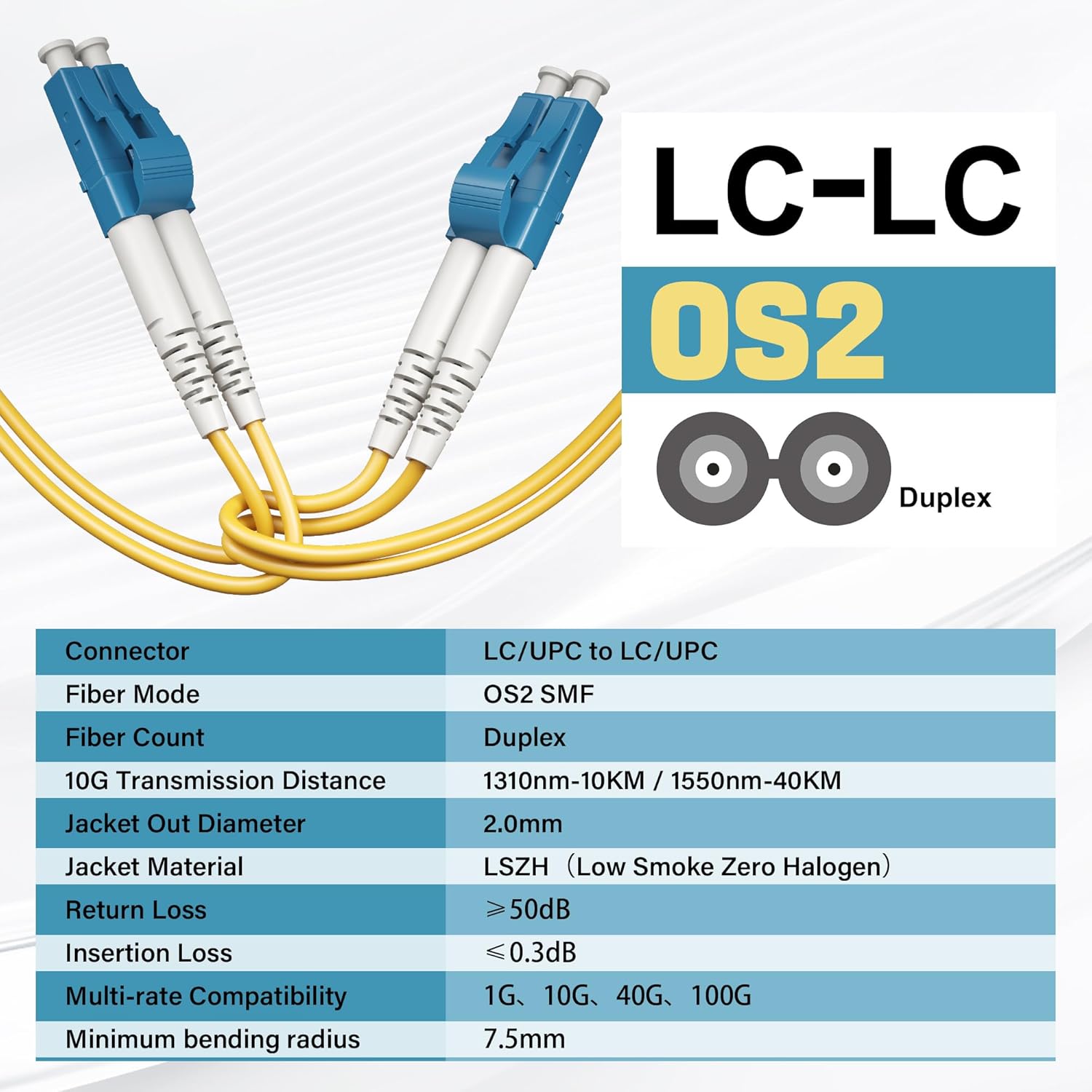

LC to LC OS2 Single Mode Fiber Patch Cable 10 Pack 5 FT,9/125μm Duplex UPC SMF Fiber Jumper Cord，OD 2.0mm Singlemode 1G/10Gb/40Gb/100G SFP/SFP+Optic Cable Lc to Lc，LSZH Jacket, Yellow

OS2 9/125μm Fiber Core Featuring an OS2 single-mode fiber core (9/125μm), it fully complies with the TIA/EIA 568-C.3 standard. It stably supports 1000BASE-LX (1G) and 10GBase-LR (10G) speeds, with ultra-long transmission distances of up to 10km at 1310nm wavelength and 40km at 1550nm wavelength. It is compatible with 10G, 10G LRM, 40G and 100G Ethernet connections, and works seamlessly with mainstream SFP/SFP+ transceivers, fiber media converters, and network interface cards. Ideal for 10G networking scenarios such as Gigabit Ethernet, Fibre Channel, LANs, data center server interconnections, and enterprise cross-floor intranets. Premium Materials Equipped with UPC (Ultra Physical Contact) polishing technology, it offers insertion loss ≤0.3dB and return loss ≥50dB, with low signal attenuation (0.36dB/km to 0.22dB/km in the 1310nm-1550nm band). The blue dust-proof protective cap fits tightly over the ferrule, preventing signal interference caused by dust, and supports ≥1000 mating cycles to meet high-frequency operation and maintenance needs. The fiber core is wrapped in Aramid Yarn, with a minimum bending radius of only 7.5mm (1/4 that of standard 50μm fiber), making it perfect for dense cable environments like server racks and TC(telecommunication closets). Safe & Durable The 2.0mm OD yellow LSZH (Low Smoke Zero Halogen) jacket is RoHS-compliant, operating stably in temperatures ranging from -20℃ to 70℃ (suitable for both high-temperature server rooms and low-temperature outdoor environments). The jacket has a compressive strength of ≥150N and ≥5000 wear-resistance cycles; in case of fire, it emits ≤50% smoke density and no hydrogen halide, making it suitable for commercial, industrial, and residential safety wiring requirements. Adjustable Clip Design The jacket’s label ring is marked with numbers "1" and "2", and the clip features raised/recessed A/B position indicators, allowing quick identification of transmit (Tx) and receive (Rx) ends during installation and troubleshooting. The connector is secured by a clip; the adjustable clip can be split to support individual fiber line connections. No additional tools are needed for wiring in tight racks, making installation and troubleshooting more efficient than standard jumpers. Multiple Specifications & Versatile Scenarios Available in multiple lengths (0.5/1.5/2/3/4/5/6/10/20/25/30/40/50/75/100 FT) and packaged in 1/5/10-piece sets, it meets diverse procurement needs (from small-batch testing to large-scale deployment). Widely used in scenarios including LANs, SANs (Storage Area Networks), Fast Ethernet, Fibre Channel, building cabling, data centers, and WANs.

• 【OS2 9/125μm Fiber Cable】Featuring an OS2 single-mode fiber core (9/125μm), it fully complies with the TIA/EIA 568-C.3 standard. It stably supports 1000BASE-LX (1G) and 10GBase-LR (10G) speeds, with ultra-long transmission distances of up to 10km at 1310nm wavelength and 40km at 1550nm wavelength. It is compatible with 10G, 10G LRM, 40G and 100G Ethernet connections, and works seamlessly with mainstream SFP/SFP+ transceivers, fiber media converters, and network interface cards. Ideal for 10G networking scenarios such as Gigabit Ethernet, Fiber Channel, LANs, data center server interconnections, and enterprise cross-floor intranets.
• 【Premium Materials】Equipped with UPC (Ultra Physical Contact) polishing technology, it offers insertion loss ≤0.3dB and return loss ≥50dB, with low signal attenuation (0.36dB/km to 0.22dB/km in the 1310nm-1550nm band). The blue dust-proof protective cap fits tightly over the ferrule, preventing signal interference caused by dust, and supports ≥1000 mating cycles to meet high-frequency operation and maintenance needs. The fiber core is wrapped in Aramid Yarn, with a minimum bending radius of only 7.5mm (1/4 that of standard 50μm fiber), making it perfect for dense cable environments like server racks and TC(telecommunication closets).
• 【Safe & Durable】The 2.0mm OD yellow LSZH (Low Smoke Zero Halogen) jacket is RoHS-compliant, operating stably in temperatures ranging from -20℃ to 70℃ (suitable for both high-temperature server rooms and low-temperature outdoor environments). The jacket has a compressive strength of ≥150N and ≥5000 wear-resistance cycles; in case of fire, it emits ≤50% smoke density and no hydrogen halide, making it suitable for commercial, industrial, and residential safety wiring requirements.
• 【Adjustable Clip Design】The jacket’s label ring is marked with numbers "1" and "2", and the clip features raised/recessed A/B position indicators, allowing quick identification of transmit (Tx) and receive (Rx) ends during installation and troubleshooting. The connector is secured by a clip; the adjustable clip can be split to support individual fiber line connections. No additional tools are needed for wiring in tight racks, making installation and troubleshooting more efficient than standard jumpers.
• 【Multiple Specifications & Versatile Scenarios】Available in multiple lengths (0.5/1.5/2/3/4/5/6/10/20/25/30/40/50/75/100 FT) and packaged in 1/5/10-piece sets, it meets diverse procurement needs (from small-batch testing to large-scale deployment). Widely used in scenarios including LANs, SANs (Storage Area Networks), Fast Ethernet, Fibre Channel, building cabling, data centers, and WANs.
• 【2-Year Warranty】: We provide a 2-Year warranty. If there is any quality issue, you can get a refund or replacement. If you have any questions, please do not hesitate to contact us via Amazon first. We will provide you with the best service and solution.
