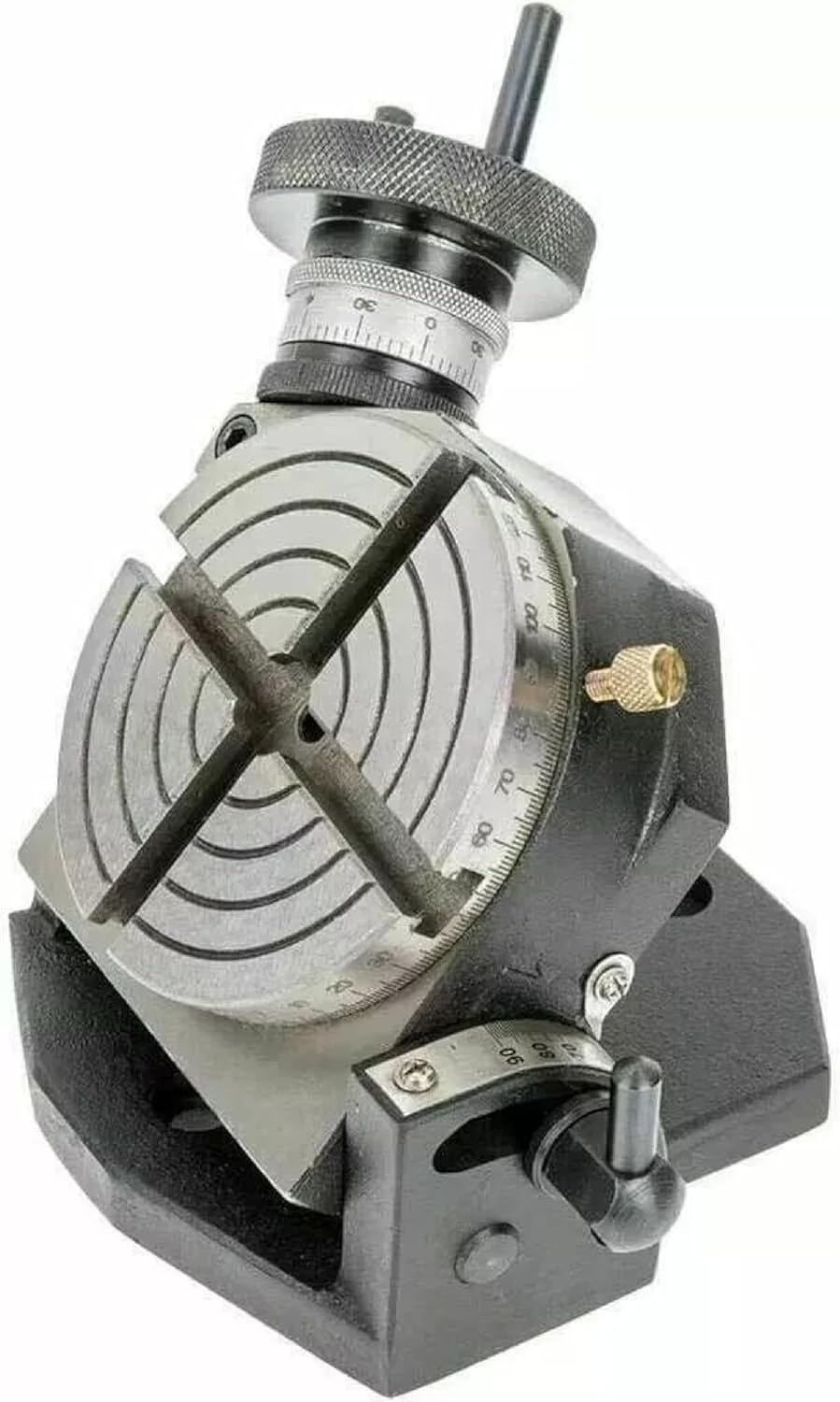

Rotary Table 4"/100 mm Tilting Horizontal And Vertical

Unlock the power of precision with this 4"/100 mm Tilting Rotary Table. Designed for versatility, it allows you to work on projects from multiple angles, both horizontally and vertically. Crafted with meticulous attention to detail, this rotary table ensures smooth rotation and accurate positioning, making it an indispensable tool for machinists, woodworkers, and hobbyists alike. With its sturdy construction and user-friendly operation, you can tackle intricate tasks with confidence. Elevate your craftsmanship and bring your ideas to life with this exceptional Tilting Rotary Table. Discover a world of possibilities and take your projects to new heights.

• Versatile Rotary Table: This 4"/ 100 mm rotary table can tilt horizontally and vertically for precise positioning.
• Durable Construction: Crafted with high-quality materials for long-lasting performance.
• Precise Adjustments: Allows for smooth and accurate rotational and tilting movements.
• Compact Size: Compact 4-inch diameter design saves workspace.
• Secure Clamping: Features robust clamping mechanism to securely hold workpieces in place.
• Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Hand wheel is graduated in divisions of 10 min & can be set to zero. Provided with oil nipple for oiling of inside body. Setting grub screw to dial and adjust the table to horizontal flat @ 0 degree is being given along with a locking screw to lock the table at the desired position.
• Center Height in horizontal position when lay flat : 2-3/4" (70 mm approx). Center Height in vertical position: 3" Inch approx (77 mm) .Can be clamped vertically and horizontally both ways.
• Base Dimensions : 142 x 128 mm. 2 Opposite counter drills of 9.5 mm diameter are located at a PCD of 102 mm approx for mounting
